Restore Phase

The requirement for the Restore process is that you must start from a new 5.5.0 installation. This includes but is not limited to:

  • No existing Normalize process running.
  • No private catalog data created or previously restored.
  • No custom reports.
note

If you have TPC data on a 5.5.0 instance or previously restored private data on 5.5.0, you cannot restore TPC data from another source again.

If you want to restore the security settings and report ACLs, make sure to use the exact same Authentication mode when running a migration from an earlier version (i.e. 5.3.x) to 5.5. Use the same Binding user name and Base DN setting if using LDAP AD (if the user is using AD). After restoring the shared/saved reports and reports ACLs, reports may not show up in User Console until you re-run normalize task. When restoring reports ACL, make sure the Migration Tool restore has been performed on Data Platform first.

For Windows Authentication backup, the restore can only be done on the same server from which the backup was created. When restoring private catalog, make sure User Console service is up and running. Also make sure to do the following:

  • Restore the backup for your private catalog onto the new 5.5.0 system you have installed and wait for the search index to build.
  • Run the Technopedia sync (without the sync, private data won’t be visible in Technopedia reports).
  • Rerun Normalize tasks (required if you have private mapping).

If the catalog is already updated to the latest version at the time of the migration and Technopedia sync does not populate data in Technopedia reports, wait 24 hours and do a sync again in order to see private data in Technopedia reports. A quicker workaround to this known issue is also to use the Normalize command line to force the Analyze ETL as follows:

\<Data_Platform_Install_Directory>\Bin\NormalizeCMD.exe-ETLCATALOG

To begin the Restore Phase of the installation process:

  1. Double-click the Data Platform Normalize Migration Wizard icon on your desktop after downloading it from a location provided by Flexera Support.

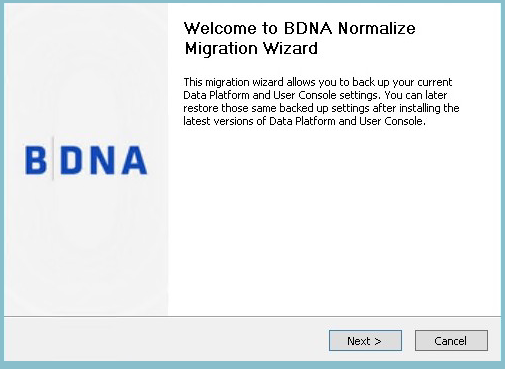

    • The Welcome screen opens:

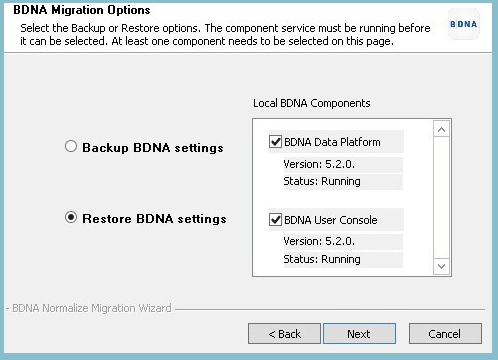

  2. Click Next . The Migration Options screen opens.
  3. Select Restore Data Platform settings , then select the check boxes for Data Platform and/or Data Platform User Console .

    • Under the Data Platform and User Console check boxes, the last version number (i.e. 5.3x or 5.4x) must be showing and the status must register as Running in order to proceed.

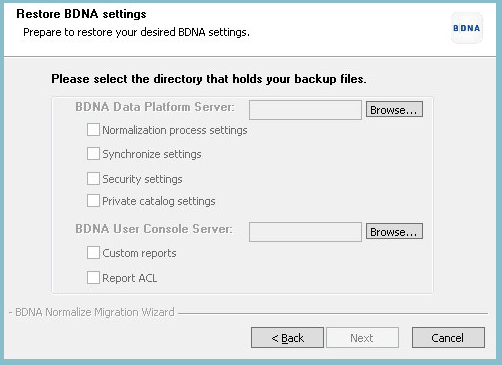

  4. Click Next . The Restore Settings screen opens.
  5. Browse for the backup output folder you copied from the backup process, then select the check boxes of the setting types you eventually want restored.

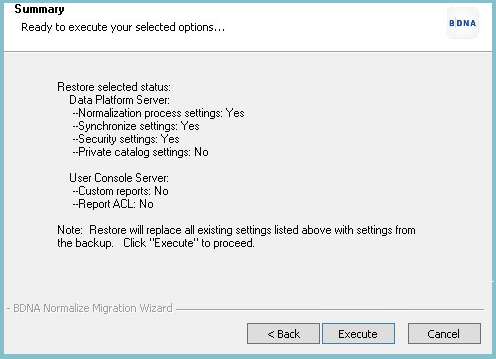

  6. Click Next . The Summary page opens.
  7. Click Execute when ready.
